Dimplex | SKU: XHD23L

Dimplex Nova Multi-Fire XHD Plug-In Electric Fireboxes

Q: What is your price match guarantee?

We are confident in our pricing and offer a price match guarantee. If you find a current lower advertised price from an authorized U.S. retailer on the same in-stock item, contact us before your purchase. While we adhere to manufacturer pricing policies, we are committed to working with you to ensure you receive the best possible value.

$804.99

Processing Time: 1-3 business days

Size - Model

23" – XHD23L (Logs) 26" – XHD26L (Logs) 26" – XHD26G (Acrylic Ember Bed) 28" – XHD28L (Logs) 28" – XHD28G (Acrylic Ember Bed) 33" – XHD33L (Logs) 33" – XHD33G (Acrylic Ember Bed)

View the Size Guide

Shipping, Delivery & Returns

Order Confirmation
You will receive a confirmation email immediately after placing your order.

Order Processing
We process and prepare orders for shipment within 1-3 business days.

Order Shipment

Once your order ships, you will receive a tracking number via email.

Parcel Shipping (Smaller Items): Standard delivery within the contiguous 48 states typically takes 2–7 business days after shipment.

Freight Shipping (Larger Items like Grills & Fireplaces): Freight delivery typically takes 3–10 business days after shipment. The carrier will contact you to schedule a delivery appointment.

Freight Delivery for Large Items
Items like grills and fireplaces are shipped via freight carrier. For a successful damage claim, please follow these steps:

Inspect Before Signing: You MUST inspect the shipment for damage or shortages before the driver leaves.
Note Any Issues: Note any damage or missing boxes on the driver's receipt or digital device before signing.
Document the Issue: Take photos and contact us within 48 hours of delivery for any problems. Detailed instructions are in our Shipping Policy.

Areas Covered
We ship within the 48 contiguous United States only.

Return & Refund Policy

At Serene Yards, we want you to be happy with your purchase.

Return Eligibility
Items must be new, unused, unassembled, and in original packaging within 30 days of delivery. Special orders and certain parts cannot be returned.

How to Initiate a Return
Contact us first! Email customerservice@sereneyards.com or call 888.254.6088 to get a Return Authorization (RA) number. Returns without an RA will not be accepted.

Return Costs

A 25% restocking fee applies.
The customer is responsible for return shipping costs.
The original shipping cost is non-refundable.

Refunds
Refunds are issued to the original payment method within 7 business days of us receiving and inspecting your return.

Questions? Please contact our customer service team.

Guides & Downloads

Electric Fireplaces Buyers Guide

Dimplex Product Catalog

Nova Firebox Sell Sheet

Nova Owner’s Manual

XHD Nova Plug-In Service Manual

The Nova Multi-Fire XHD is the only Dimplex firebox that ships plug-in ready — no hardwiring, no dedicated circuit run, no framing required for retrofit installs.

Best for retrofitting an existing zero-clearance wood-burning fireplace to electric without rewiring or pulling a new circuit, or for buyers who want a plug-and-play firebox that connects to a standard household outlet. Two media options — Realogs® with pulsing ember bed or acrylic crystal — let the look match the room.

Multi-Fire® Flame Effect layers LED over a physical media bed, with a built-in thermostat offering 13 settings from 62°F to 84°F. Available in 23", 26", 28", and 33" sizes at an 8-inch minimum installation depth on a 120V, 15-amp circuit producing 5,000 BTU at 1,465 watts. Plug-in installation requires no hardwiring, no gas line, no venting; the flame runs independently from the heater for year-round use.

A firebox that turns the outlet you already have into a fireplace.

Secure Checkout

Your order is protected by SSL encryption. We never store your payment details.

Why Choose the Dimplex Nova Multi-Fire XHD Plug-In Electric Fireboxes?

The Dimplex Multi-Fire XHD is the only plug-in firebox in the Serene Yards
Dimplex lineup, running on a standard 120V outlet with no hardwire, no gas
connection, and no venting of any kind.

Optiflame technology — a proven flame standard The Multi-Fire XHD uses
Optiflame technology, Dimplex's LED-based flame system that layers light over a
physical media bed to produce visible depth and movement in the flame.

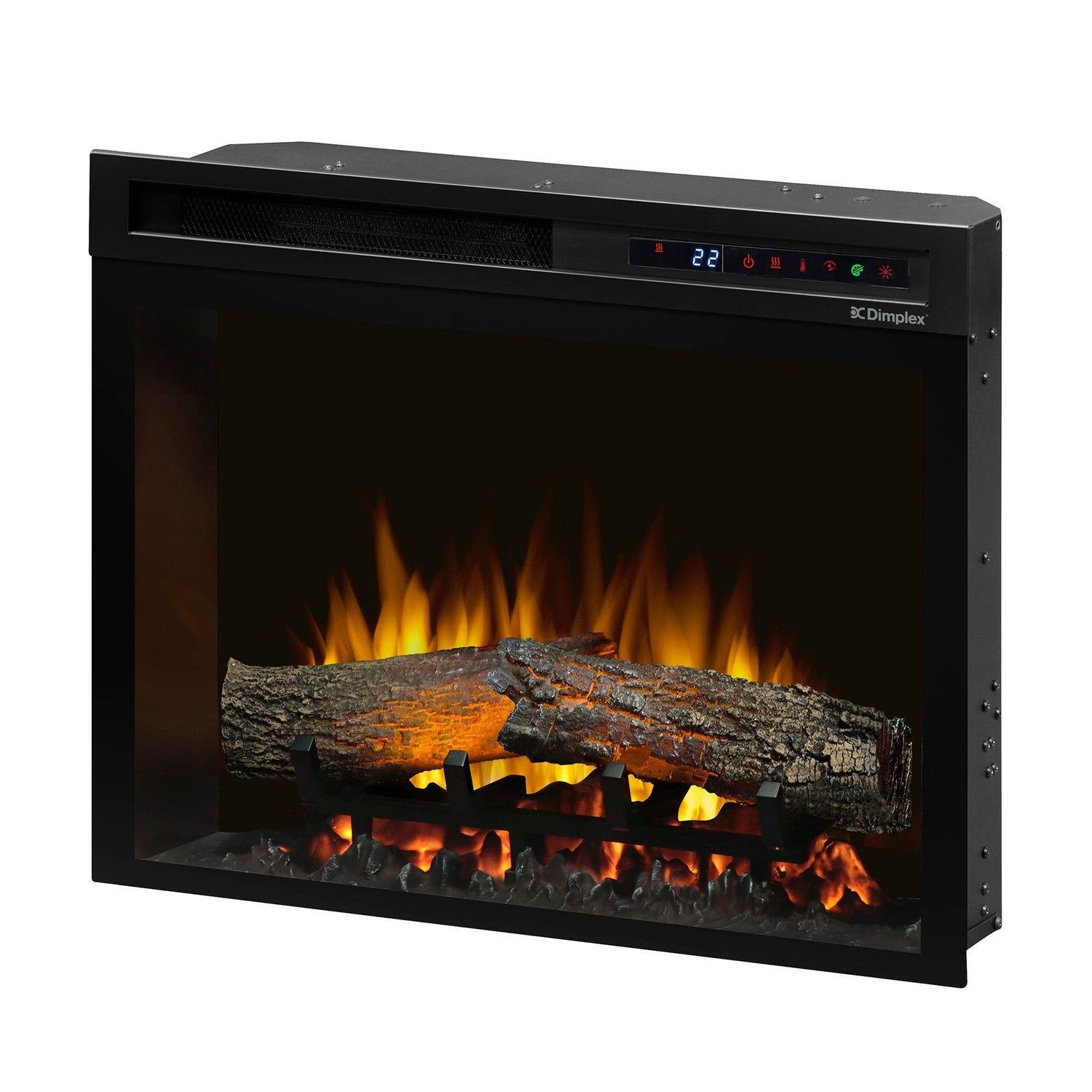

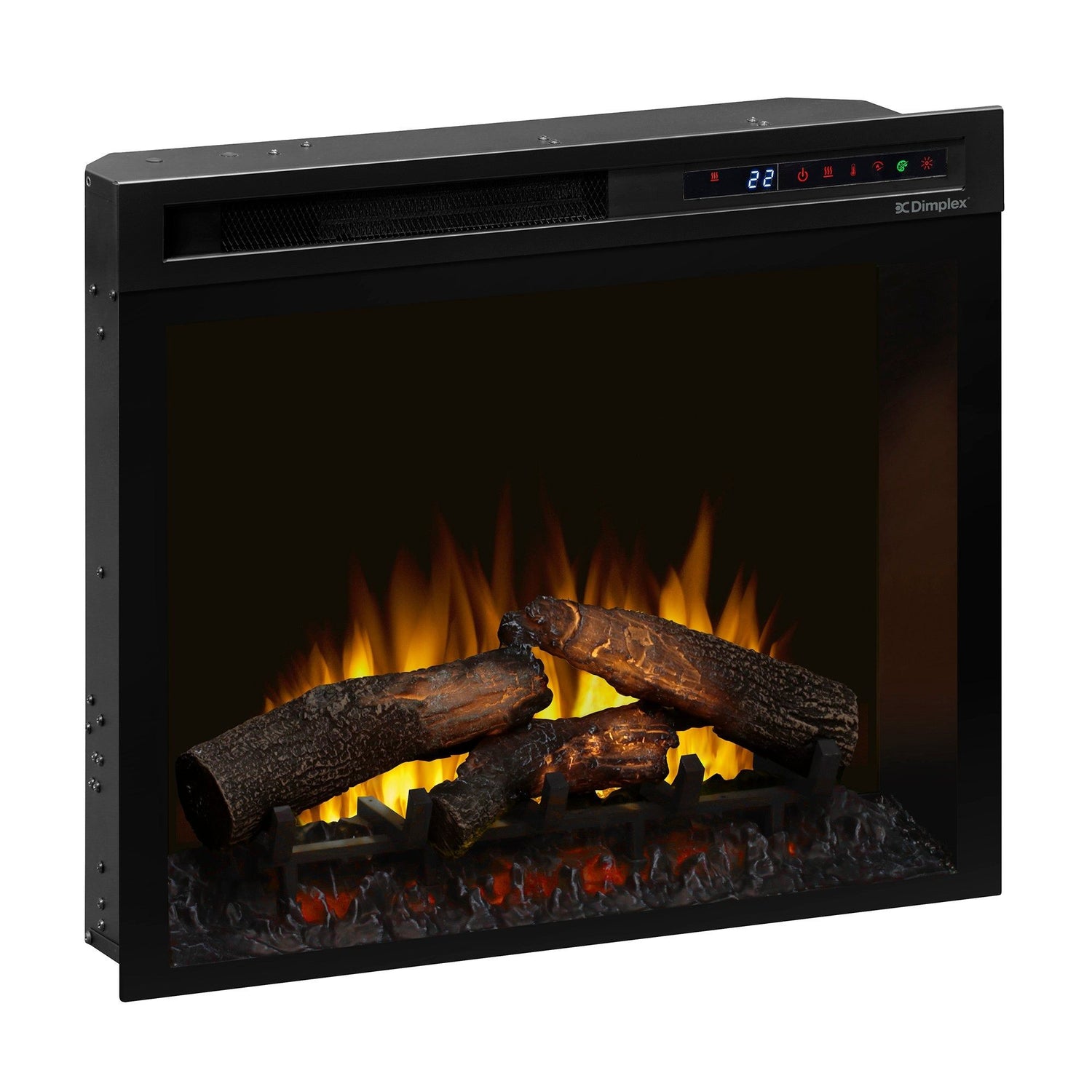

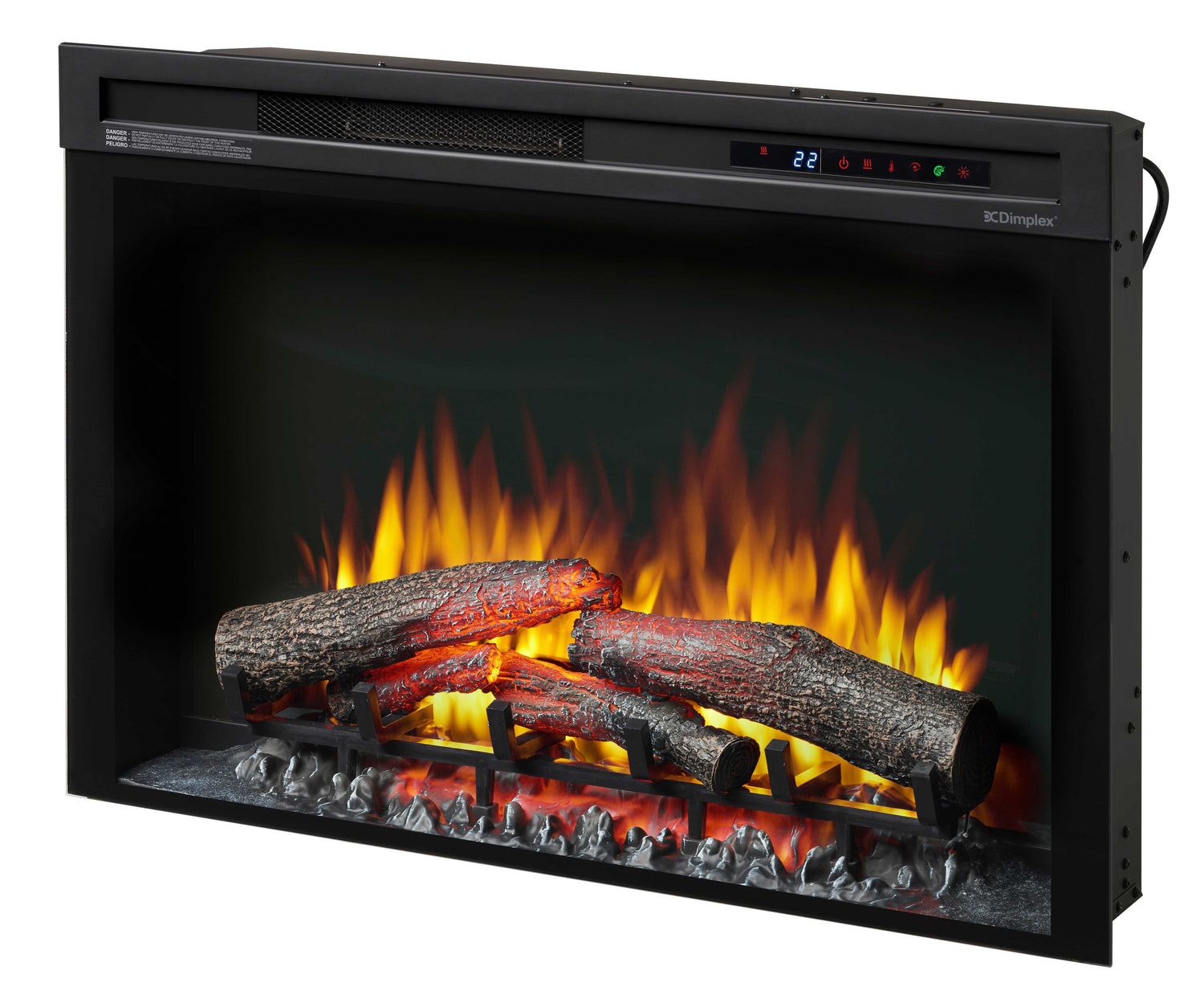

Four sizes, two media options Available in 23", 26", 28", and 33" widths.
Each size comes in Realogs® (inner-glow logs and pulsing ember bed) or Acrylic
Crystal media, with additional Driftwood and River Rock kits available for
select sizes.

Documented heat output Rated at 1,465W and 5,000 BTU, controlled via a
built-in thermostat with 13 temperature settings from 62°F to 84°F.

Flame runs without the heater The flame effect and heater operate on
separate controls. The manufacturer confirms flame-only operation year-round.

Backed by a 2-year limited warranty from Glen Dimplex Americas, covering
defects in material and workmanship, with on-site service included for the
original purchaser.

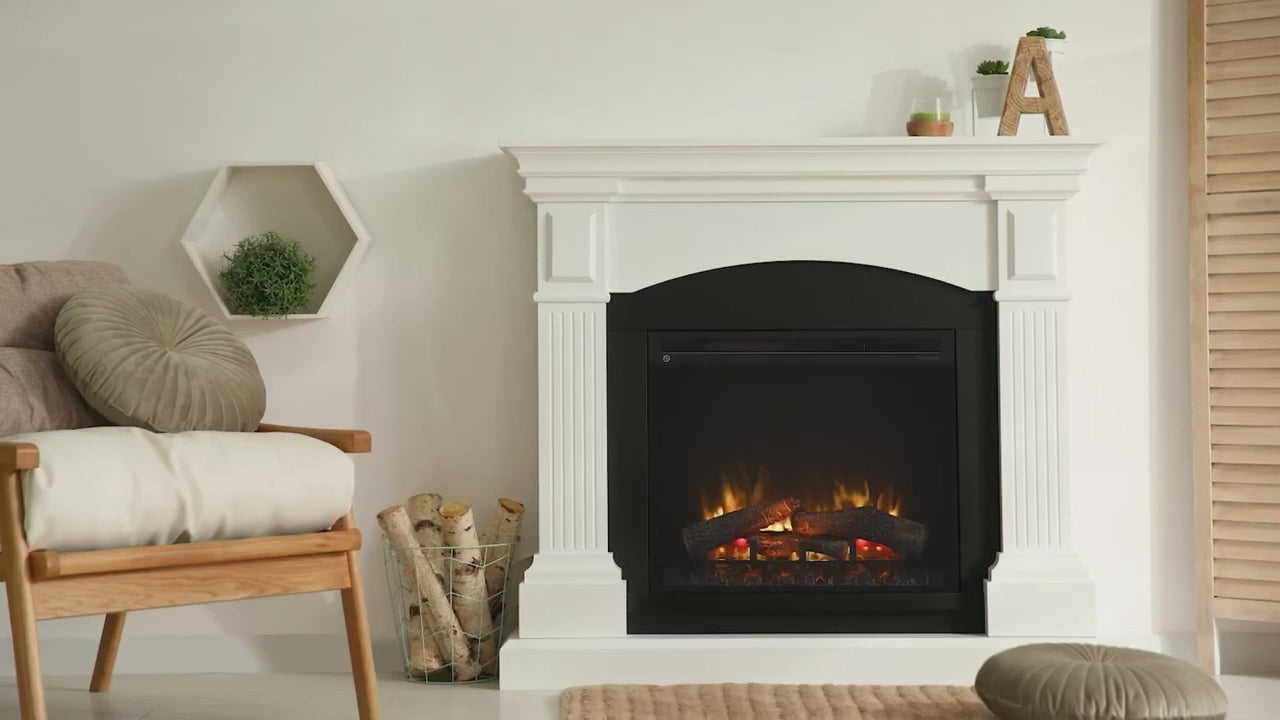

See the Dimplex Nova Multi-Fire XHD Plug-In Electric Fireboxes in Action

Dimplex Nova Multi-Fire XHD Plug-In Electric Fireboxes Style Inspiration

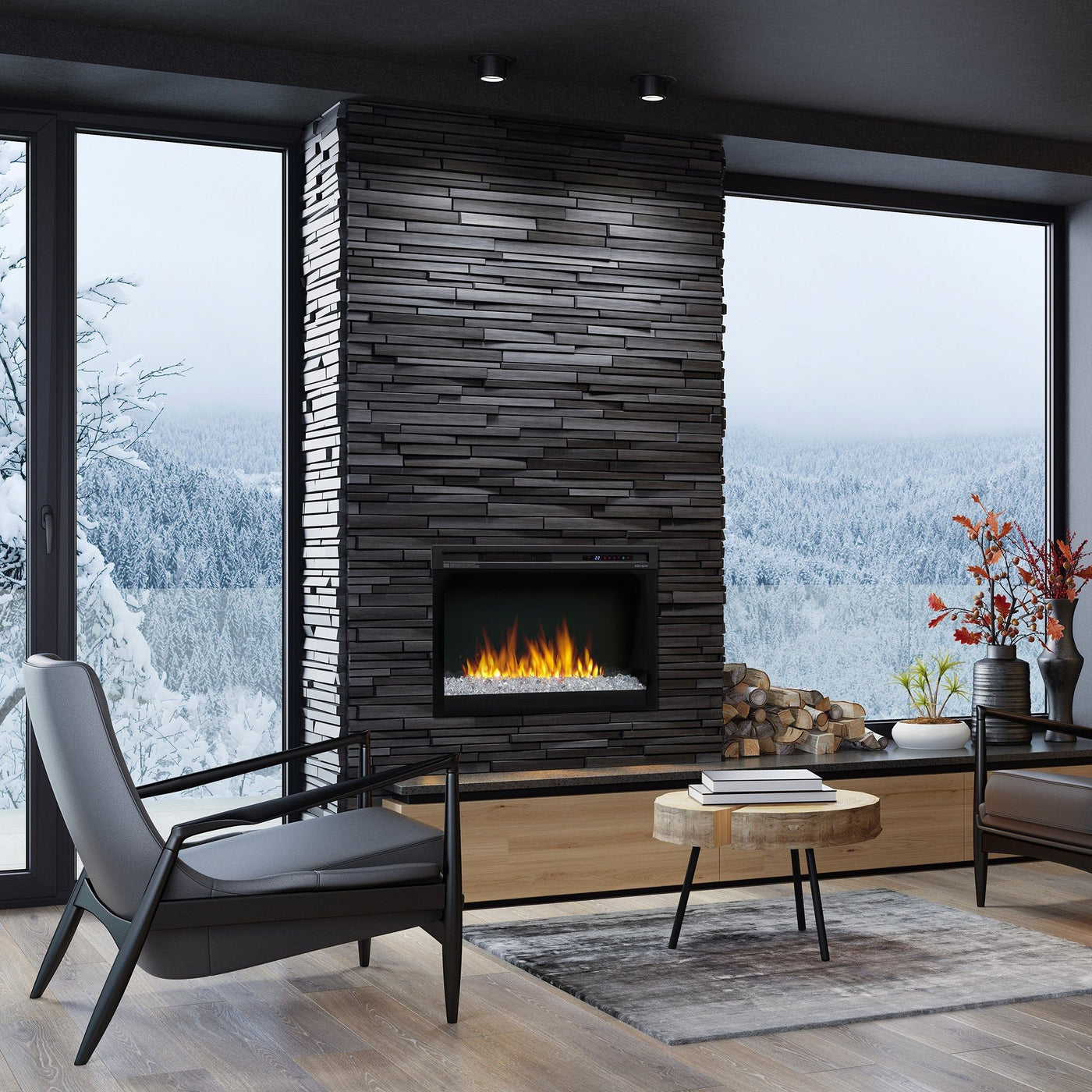

Modern living room with stacked stone fireplace featuring glowing flames, wood accents, neutral chairs, and snowy mountain views

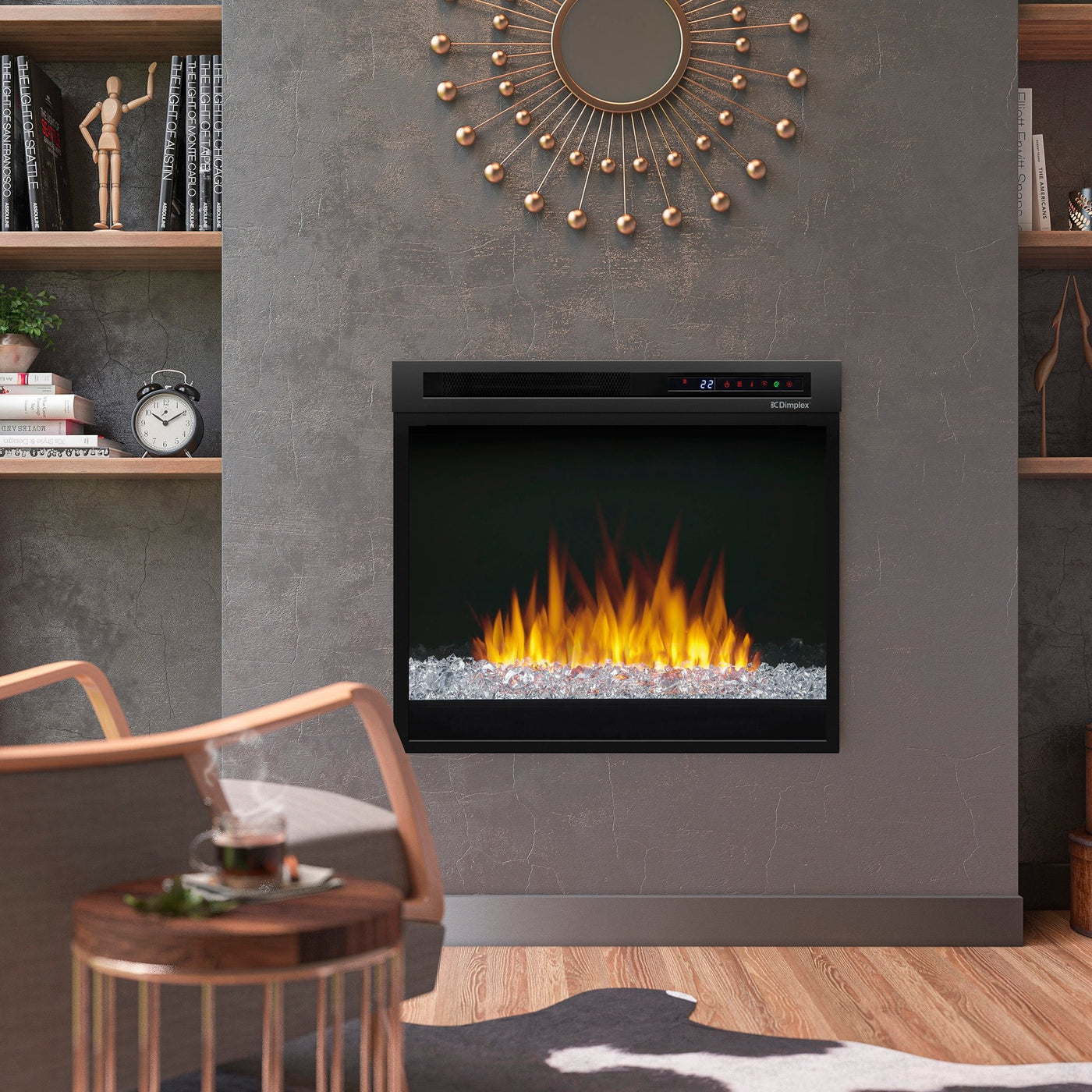

Modern wall-mounted electric fireplace with glowing yellow flames, crystal ember bed, and gray textured wall background

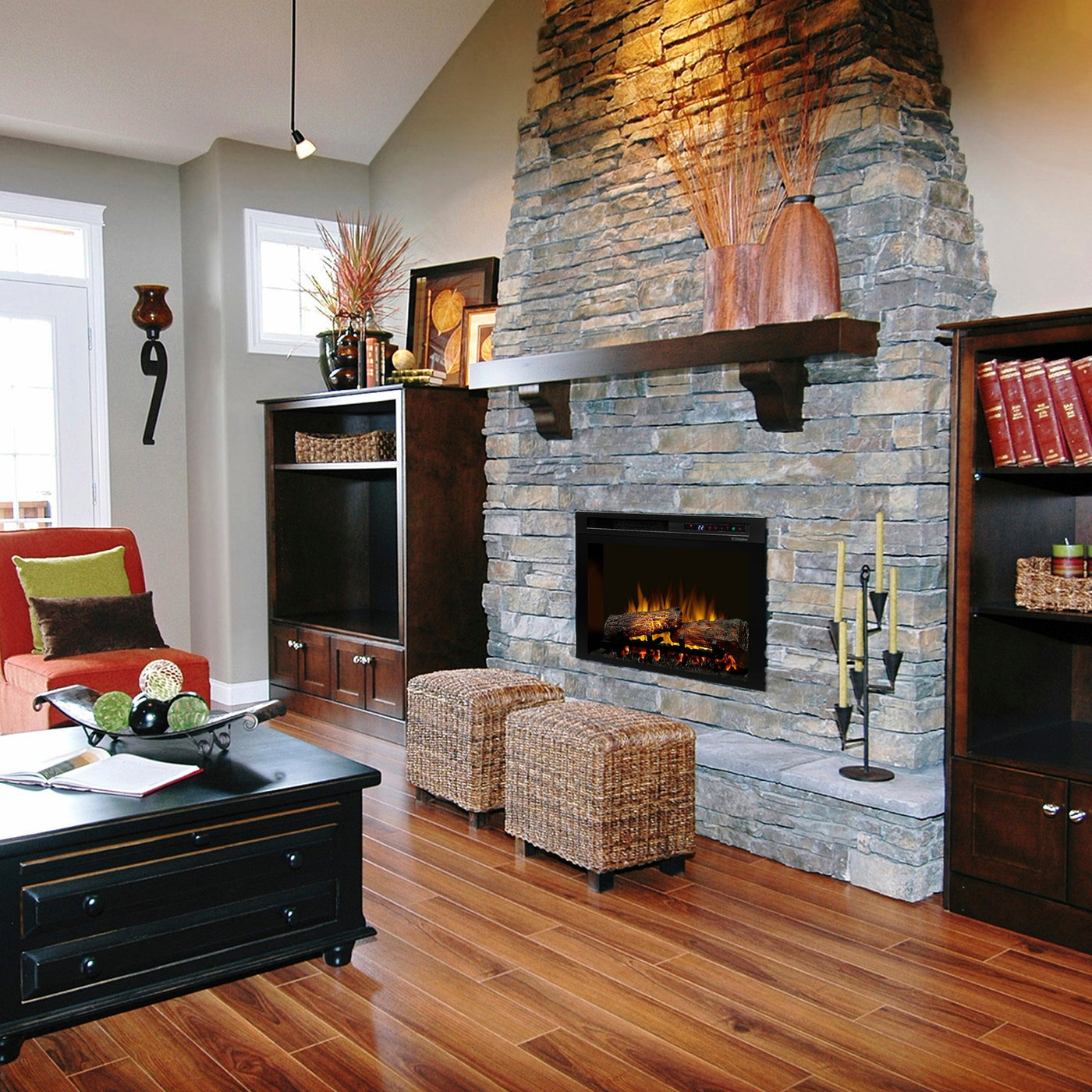

Cozy living room with stone fireplace, electric firebox with glowing flames, dark wood furniture, and woven stools on hardwood floor

Dimplex Nova Multi-Fire XHD Plug-In Electric Fireboxes Installation Overview

The Dimplex Multi-Fire XHD is a plug-in firebox that installs into a framed
opening in a mantel, cabinet, or existing fireplace surround — no gas line,
no venting, and no hardwire electrical work required. It connects to a standard
grounded 120V outlet on a 15 Amp circuit; a dedicated circuit is preferred and
will be required if the breaker trips during operation. For complete framing
dimensions across all four sizes, see the Dimplex Multi-Fire XHD Size Guide →

FAQ – All Your Questions Answered

Does the Dimplex Multi-Fire XHD require venting or a gas line?

No. The Dimplex Multi-Fire XHD is 100% electric and requires no venting and no
gas line. It plugs into a standard grounded 120V household outlet. The
manufacturer requires a 15 Amp, 120 Volt circuit — a dedicated circuit is
preferred but not required in all cases. One will be necessary if the breaker
trips during heater operation.

What does it cost to run the Dimplex Multi-Fire XHD?

Running cost depends on your local electricity rate, shown on your utility bill
as cents per kWh.

To calculate your hourly cost:
1,465W ÷ 1,000 = 1.465 kW
1.465 kW × your rate per kWh = your cost per hour

Dimplex Multi-Fire XHD power draw:
Full heat (120V): 1,465W = 1.465 kW per hour
Flame-only mode: LED wattage only — not specified in manufacturer documentation

Example at the approximate U.S. average of 16–17 cents per kWh — verify with
your utility bill:
Full heat: 1.465 × $0.16 = approximately $0.23 per hour
Full heat: 1.465 × $0.17 = approximately $0.25 per hour

Rates range from under 10 cents in some states to over 30 cents in others.
Multiply 1.465 by your actual rate for an accurate estimate.

Can the flame effect be used without the heater?

Yes. The flame effect and heater operate on separate controls. The manufacturer
documents flame-only operation — the flame can run year-round without activating
the heating element. The heater can also be fully disabled via the touch panel
(Heat and Temp buttons held simultaneously for 2 seconds) while the flame and
all other controls remain active.

What warranty does the Dimplex Multi-Fire XHD come with?

The Dimplex Multi-Fire XHD is covered by a 2-year limited warranty from Glen
Dimplex Americas, covering defects in material and workmanship from the date of
first purchase. The warranty applies to the original purchaser only and is not
transferable. On-site or in-home warranty service is included. The warranty does
not cover defects resulting from misuse, incorrect installation, improper
maintenance, or operation with an incorrect power source. Light bulbs are
excluded from warranty coverage.

Can the Dimplex Multi-Fire XHD be installed beneath a television?

Minimum clearance above the glass opening is not specified in the manufacturer
installation manual. The manual does state that high temperatures may be
generated under certain abnormal conditions and that the front of the fireplace
must not be obstructed. Consult a qualified installer for TV placement guidance
specific to your installation.

What dedicated circuit does the Dimplex Nova Multi-Fire XHD require?

The Dimplex Nova Multi-Fire XHD requires a 15 Amp, 120 Volt circuit. The manufacturer
states a dedicated circuit is preferred but not required in all cases — one will
be required if the circuit breaker trips or the fuse blows on a regular basis
when the heater is operating, which can happen when additional appliances on the
same circuit exceed the breaker's current rating. The unit plugs into a standard
grounded 3-prong outlet; no hardwire connection is involved.

Is the Dimplex Nova Multi-Fire XHD noisy?

Fan noise levels are not specified or rated in the manufacturer documentation.
The Multi-Fire XHD uses a fan-forced heating system. The installation manual
notes the heater fan will continue operating for 2 minutes after the heater is
switched off. Flame-only mode, which turns off the heater and fan, is available
for quiet ambiance use.

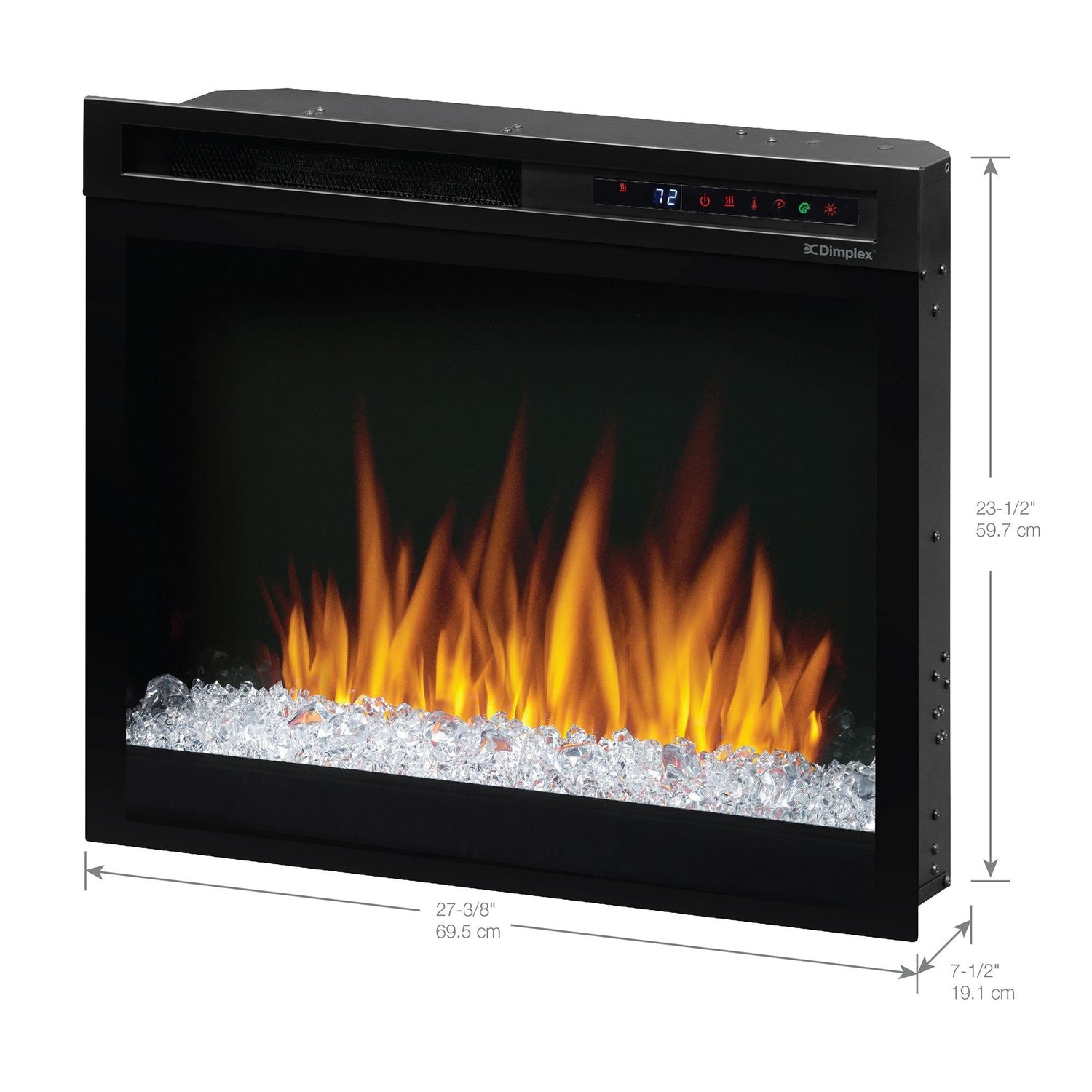

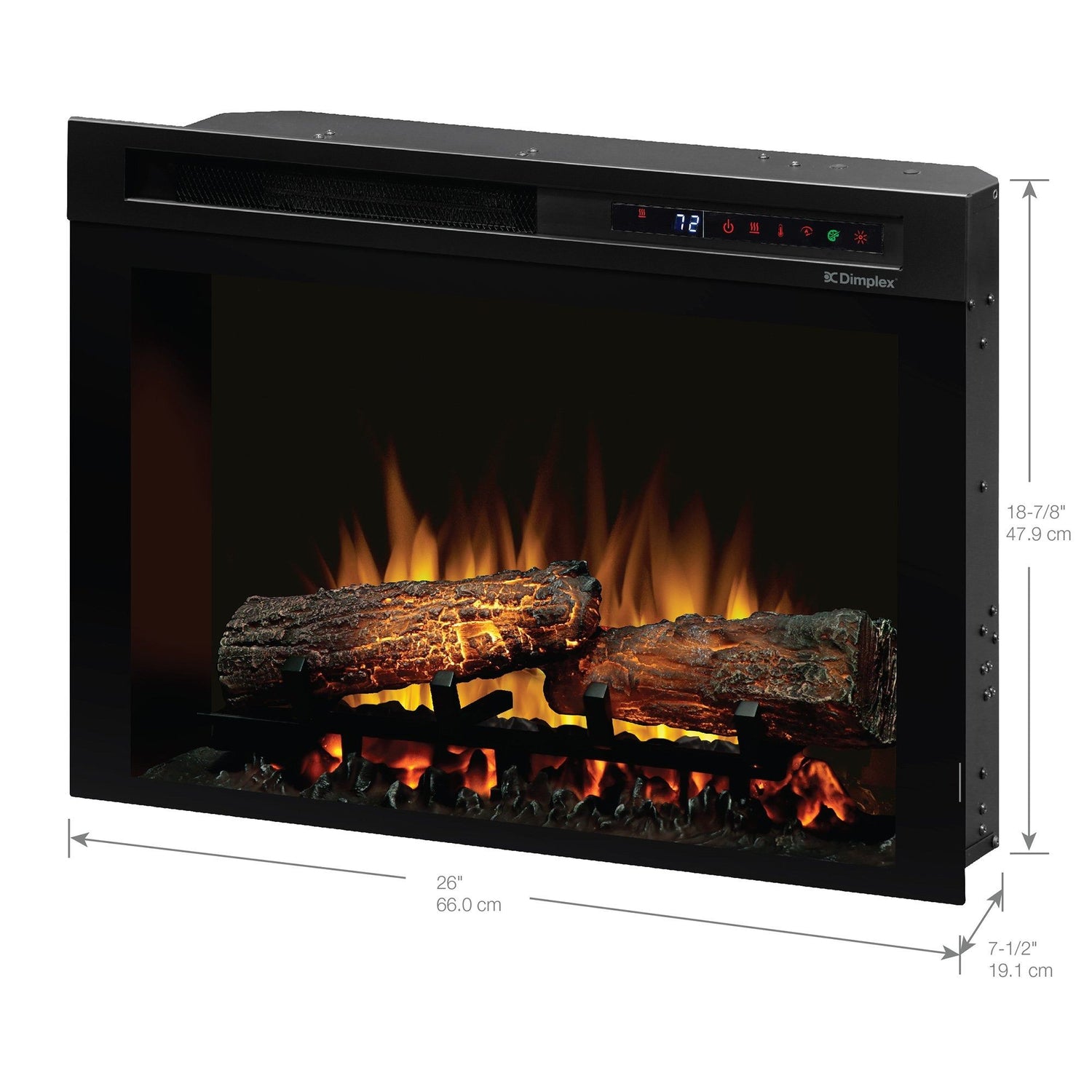

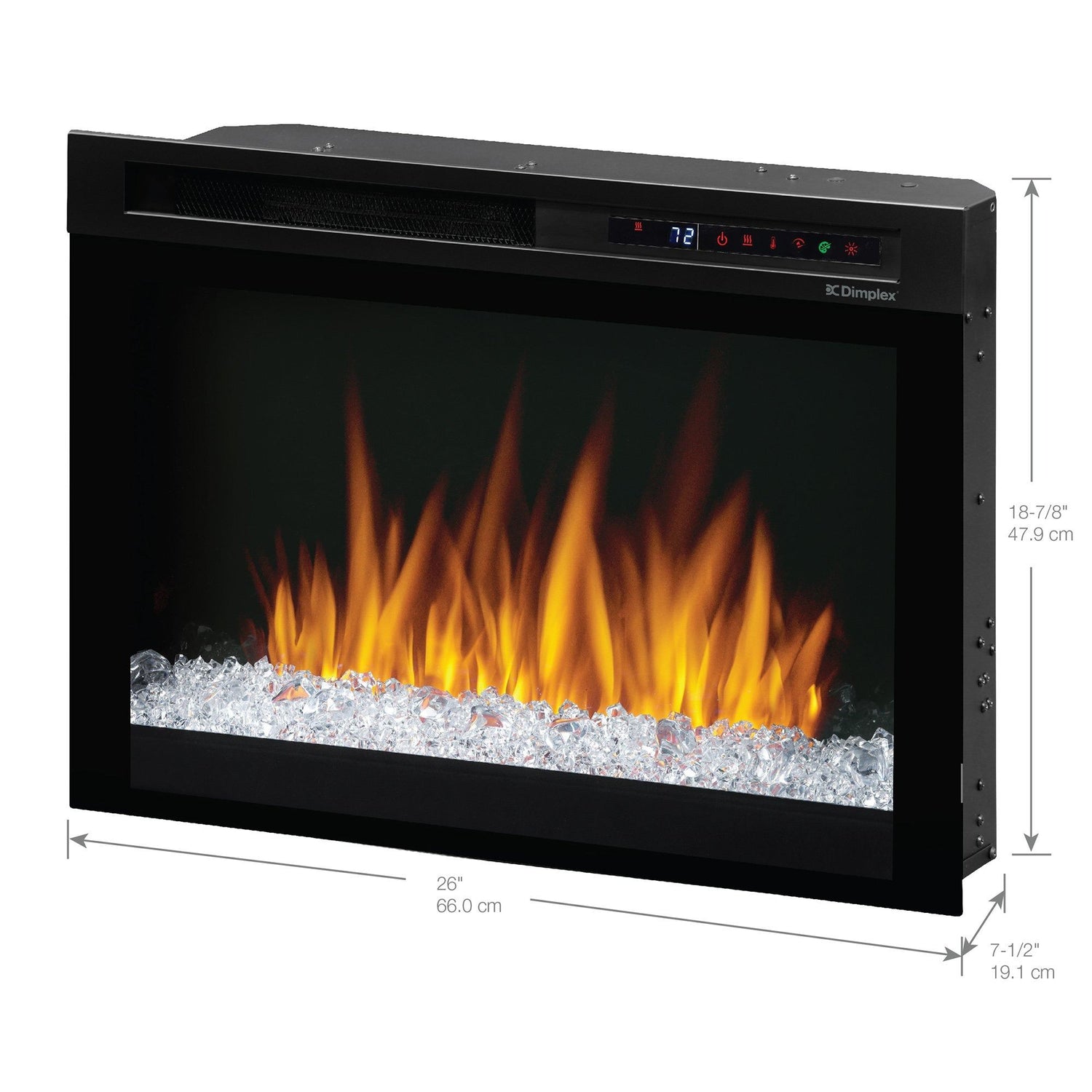

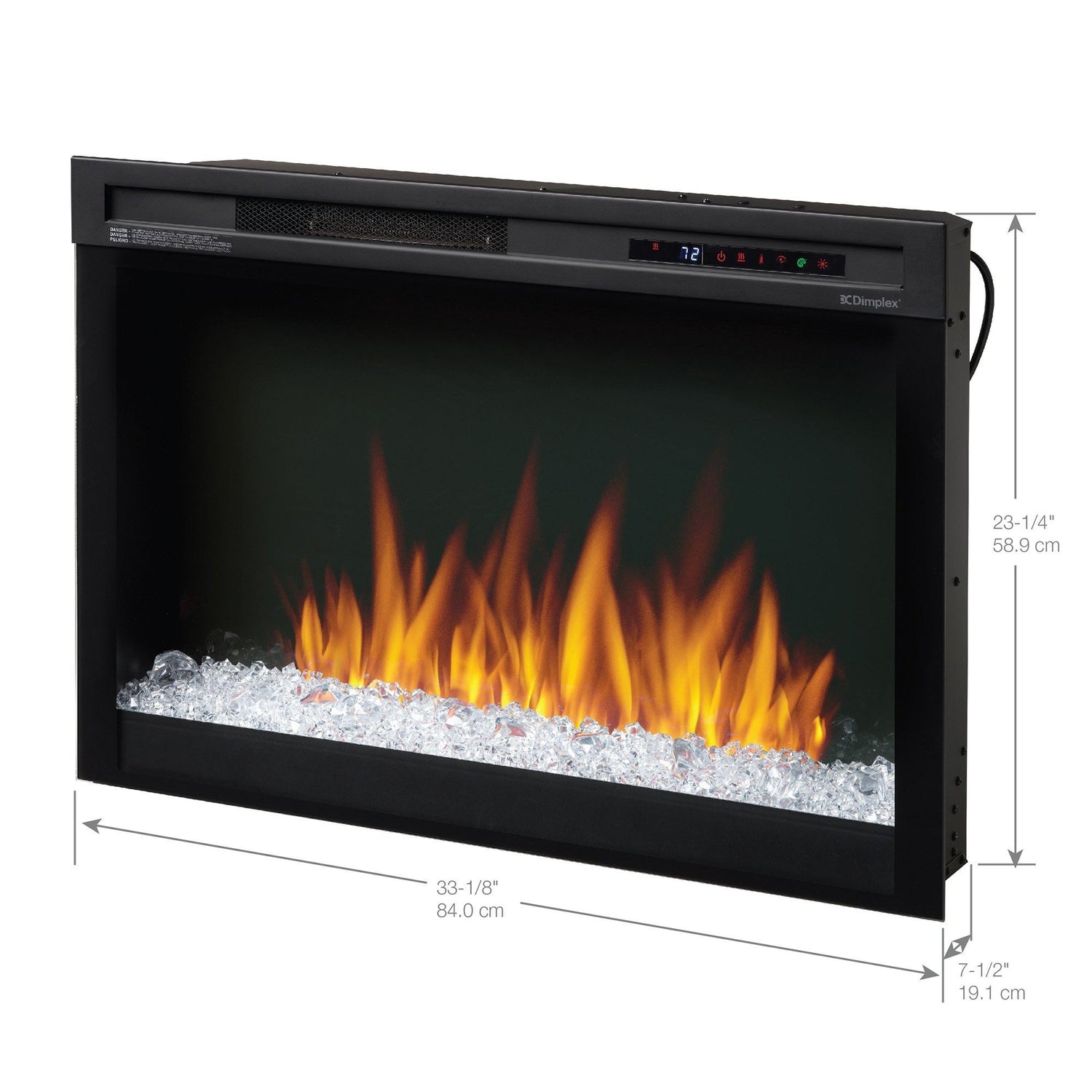

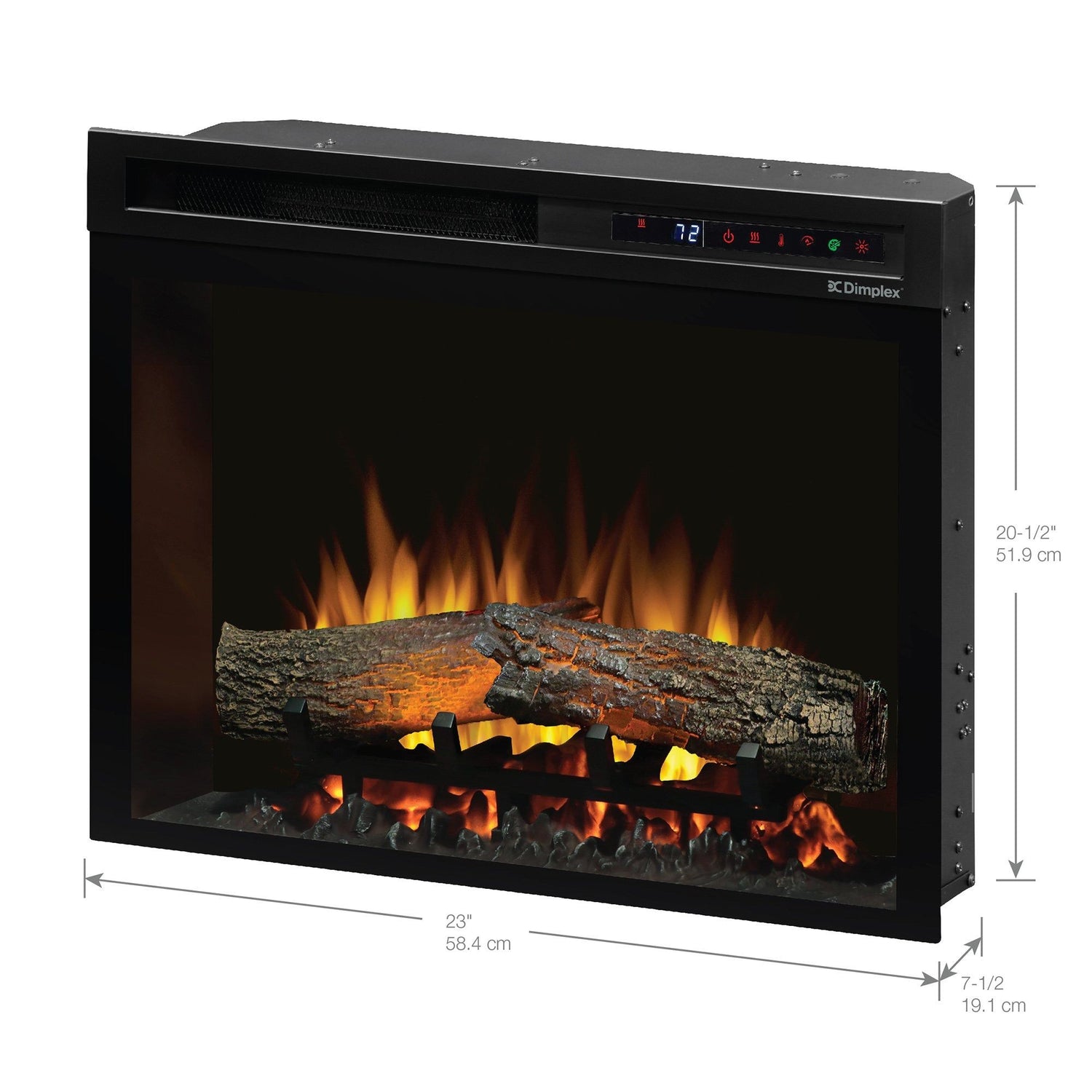

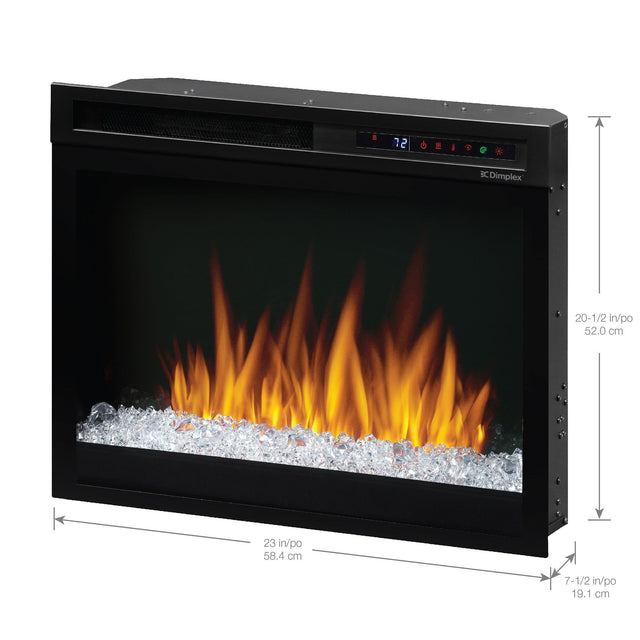

What sizes does the Dimplex Multi-Fire XHD come in, and what opening does each size require?

The Nova Multi-Fire XHD is available in four sizes. Each requires a minimum opening
of 8 inches deep across all sizes. Framing dimensions by size:

23" model (XHD23L / XHD23G): minimum opening 21-1/2" wide × 20" high × 8" deep
26" model (XHD26L / XHD26G): minimum opening 24-3/8" wide × 18-1/2" high × 8" deep
28" model (XHD28L / XHD28G): minimum opening 27" wide × 23-1/8" high × 8" deep
33" model (XHD33L / XHD33G): minimum opening 31-5/8" wide × 22-5/8" high × 8" deep

For complete dimensions including overall unit measurements, see the
Dimplex Nova Multi-Fire XHD Size Guide.

What is your price match guarantee?

We are confident in our pricing and offer a price match guarantee. If you find a current lower advertised price from an authorized U.S. retailer on the same in-stock item, contact us before your purchase. While we adhere to manufacturer pricing policies, we are committed to working with you to ensure you receive the best possible value.
